Capture Filters


Description Catalog #

Capture Filter 1/8" Npt

93126-100

Capture Filter 1/8" Npt

93126-100

Capture Filter 3/8" Npt

93126-101

Capture Filter 1/2" Npt

93126-102

Capture Filter 3/4" Npt

93126-103

Capture Filter 1" Npt

93126-104

Capture Filter 1 1/2" Npt

93126-105

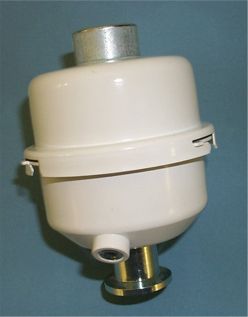

HyVac Capture filters are special exhaust filters that capture the exhaust from the vacuum pump filter the oil mist back into the pump and then allow the actual gas being pumped to be captured for direction to a hood or out of the building by using an exhaust line.  HyVac capture filters employ standard female national pipe thread ports for the capture port meaning the local plumbing supply store can supply mating fittings to port the exhaust.  The filters connect to the pump by either male national pipe thread or industry standard NW flanges meaning they can be simply clamped on the exhaust port.  If you need vacuum fittings we make these also.  the filters employ replaceable elements that are simply changed by removing from the housing and reinstalling a new filter.  The units all come with a port for hooking up a drain line back to the pump.  Because they are "coalescing" filters the oil capture by the media can be returned to the pumps sump.
