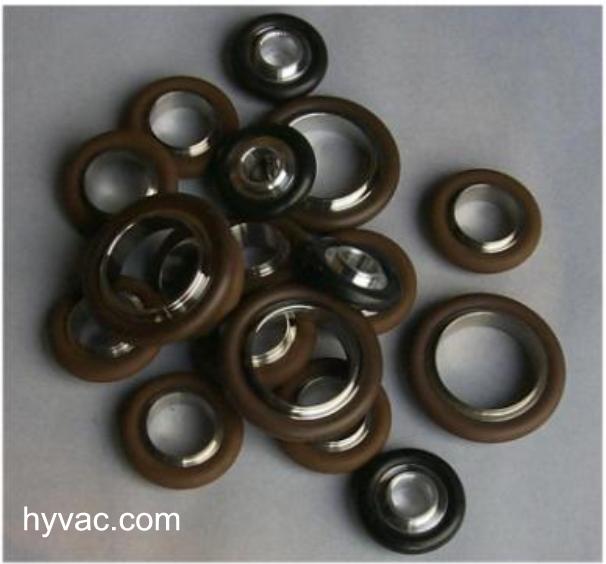

Centering Rings

NW / QF / KF / ISO Sizes for 10 / 16 / 25 / 40 / 50


These are your basic flange fittings for closing over or blanking off a standard port of the sizes listed.  We will make these in whatever material you desire although our standard fittings come in both aluminum and 304 stainless steel.  We can make these in a variety of other materials including plastics and brass.  We make specials no problem.  I say no problem but specials should have some quantity behind them or they get pricey.

Elastomers for the o-rings usually used on these items are Buna-n, silicone or perfluoro (Viton).  Stainless and perfluoro is the choice for chemical contamination or aggressive environments.

These items are packaged loose in baggies.  Nothing fancy, but the price is right.

I haven't had the time to back fill these prices so if you want to purchase and need the prices we have them all laid out for you in 2 different formats.
Price lists for all the fittings

HyVac Part Number Description

60160-011 QF 16 Alum + Buna
60250-011 QF 25 Alum + Buna
60400-011 QF 40 Alum + Buna
60500-011 QF 50 Alum + Buna

60160-031 QF 16 304 Stainless + Vit
60250-031 QF 25 304 Stainless + Vit
60400-031 QF 40 304 Stainless + Vit
60500-031 QF 50 304 Stainless + Vit

Call QF 16 304 Stainless + Silicon
Call QF 25 304 Stainless + Silicon
Call QF 40 304 Stainless + Silicon
Call QF 50 304 Stainless + Silicon

60160-046 QF 16 304 Stainless No Oring
60250-046 QF 25 304 Stainless No Oring
60400-046 QF 40 304 Stainless No Oring
60500-046 QF 50 304 Stainless No Oring

60160-041 QF 16 Alum No Oring
60250-041 QF 25 Alum No Oring
60400-041 QF 40 Alum No Oring
60500-041 QF 50 Alum No Oring

  Over Pressure Rings
  Centering Rings with Screens
  Adaptive Centering Rings
  Other materials, we have them all

  Other Sizes Please
  Call Us !!!


Example on how they go together.
