Reducer Fittings

NW / QF / KF / ISO Sizes for 10 / 16 / 25 / 40 / 50


These are your basic flange fittings for creating a reduction in one QF size fitting to another QF size on the vacuum system.  Our standard fittings come in both aluminum and 304 stainless steel.  We can have these in a variety of other materials including plastic.  Specials are available also they generally come like NW40xNW16..

These items are packaged loose in baggies.  Nothing fancy, but the price is right.  Machined out of solid bar stock, NO WELDS like many of the other products that are available.  We may have few stray ones with welds left but we are running this stuff and making it from solid bar stock.

I haven't had the time to back fill these prices so if you want to purchase and need the prices we have them all laid out for you in 2 different formats.
Price lists for all the fittings

HyVac Part Number Description

60160-381 QF16xQF25 304 Stainless
60160-391 QF16xQF40 304 Stainless
60160-401 QF16xQF50 304 Stainless

60160-381 QF25xQF16 304 Stainless
60250-421 QF25xQF40 304 Stainless
60250-431 QF25xQF50 304 Stainless

60160-391 QF40xQF16 304 Stainless
60250-421 QF40xQF25 304 Stainless
60400-486 QF40xQF50 304 Stainless

60160-401 QF50xQF16 304 Stainless
60250-431 QF50xQF25 304 Stainless
60400-486 QF50xQF40 304 Stainless

  Other Styles. Conicals and
  Specials Please
  Call Us !!!

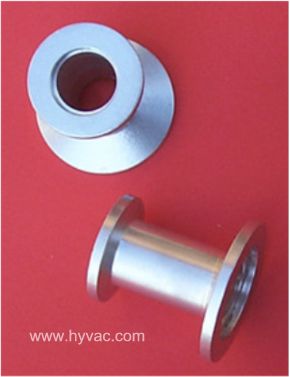

Example on how they go together.
