Pump Oil Spec

Technical Data Sheet

HyVac Vacuum Pump Oil is a high quality, high boiling range, straight mineral oil of approximately 350 SUS at 100° F. Its low vapor pressure and other unique characteristics make it especially suitable for use in most high vacuum pumps including Welch, Precision and of course, the best, the HyVac Pumps.

HyVac Pump Oil is refined from specially selected mid-continent solvent refined paraffinic crude oils. Among some of the prime benefits of HyVac pump oil are its inherently high oxidation resistance and low chemical reactivity. These benefits allow for maximum pump oil life and oil regeneration capabilities through use of the gas ballast valve present on many vacuum pumps. Because of the high viscosity index of HyVac pump oils, they can be expected to maintain proper viscosity over a wide temperature range allowing for excellent pump bearing lubrication, long seal life and maximum pump durability.

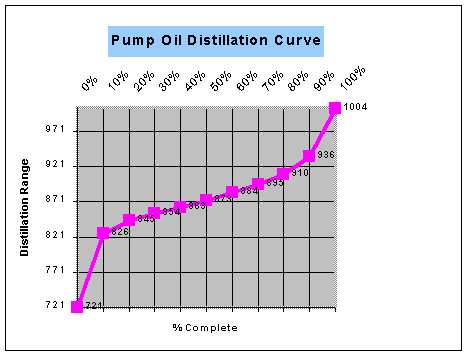

Special handling during packaging assures absence of contaminates that would adversely affect vapor pressure performance of the pump oil. The following chart details the boiling point curve of the HyVac Pump Oil.

HyVac Oils are available in a number of packages including quart and gallon containers and cases of 12 x 1 quart and 4 x 1 gallon sizes. They are also available in bulk quantities of 5 gallon plastic pails and 55 gallon steel drums.

Catalog Number - 93050

MSDS Sheet HyVac Pump Oil
MSDS Sheet Adobe Acrobat PDF File Format
Specification Sheet Adobe Acrobat PDF File Format

Pump Oil Distillation Range

IBP	721° F
10%	826° F
20%	845° F
30%	854° F
40%	863° F
50%	873° F
60%	884° F
70%	895° F
80%	910° F
90%	936° F
End Point	1004° F
Recovered	99.5%

HyVac Pump Oil Technical Data Sheet

Catalog/Product Number - 93050

Characteristic	Value
ISO Grade	68
Gravity, API	29.5
Pounds per Gallon	7.32
Pour,°F	+10
Flash Point,°F	450
Fire Point,°F	510
Viscosity,SUS.at.100°F	359
Viscosity,SUS.at.210°F	55
Viscosity,cSt.at.40°C	67
Viscosity,cSt.at.100°C	8.7
Color.ASTM.D-1500,max	1.5
Viscosity Index, Min.	95
Neutralization Number	0.05
Copper Strip Corrosion, Max.	2.00
Carbon Residue, Conradson,%	<0.02
Vapor Pressure, Max.
at.25°C	10^-6 Torr
at.75°F	10^-6 Torr

HyVac Pump Oil is available in a number of packages including quart and gallon containers and cases of 12 x 1 quart and 4 x 1 gallon sizes. It is also available in bulk quantities of 5 gallon plastic pails and 55 gallon steel drums.

HyVac Direct Drive oil should be employed were direct drive pumps are used such as the HyVac 30L/55L, Welch Director, Leybold, Edwards, and Alcatel vacuum pumps.

Other HyVac Vacuum oils include HyVac Flushing Oil, Direct Drive Oil and Heavy Pump Oil.
